Author Topic: Aux Lights - Easy and Cheap  (Read 2961 times)

0 Members and 1 Guest are viewing this topic.

Offline jgk1459

  • XR Member
  • **
  • Topic Author
  • Posts: 46
  • Bike: 2016 XR SE
  • Country: gb
Aux Lights - Easy and Cheap
on: July 25, 2018, 08:43:53 AM
Thought I'd share my auxiliary lighting solution, not professional in any way but clean and simple.

I came from a GS and always considered the principle of 'illumination triangle' to be a very effective way of increasing road presence but never really liked the idea of large spots on my XR - no disrespect to anyone, just personal taste.

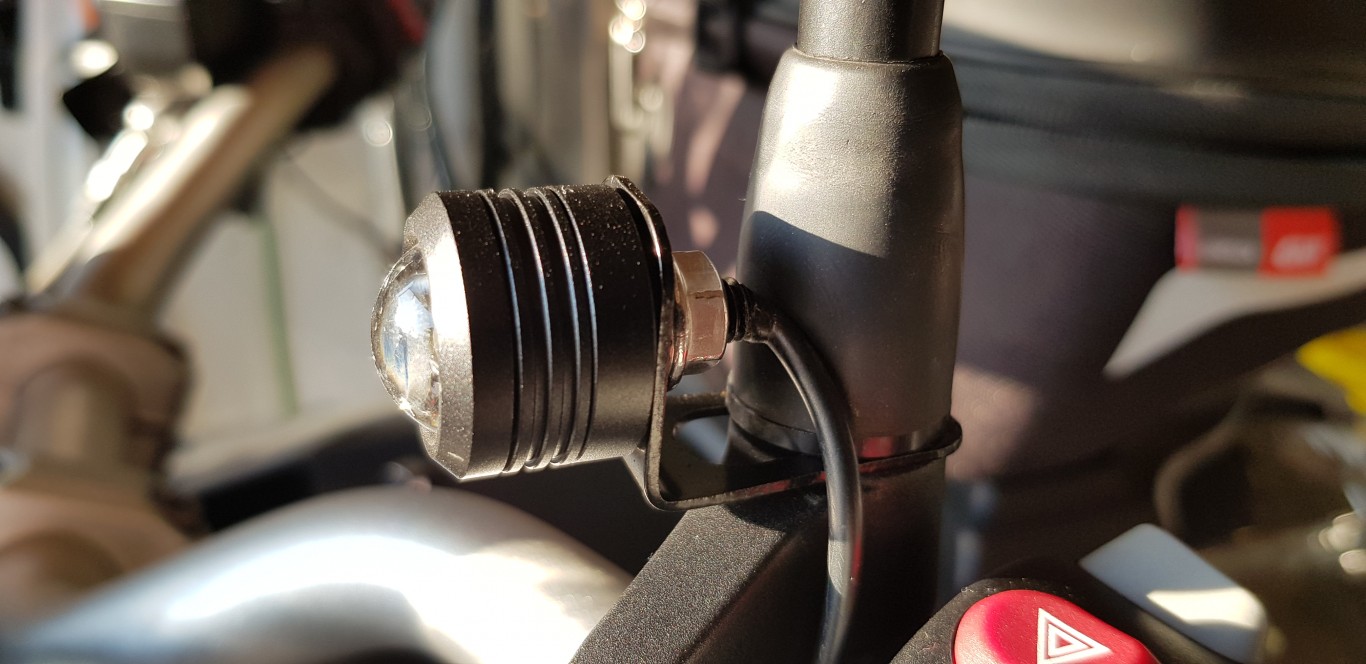

So, I found some really small 3W LED spots designed to mount on the mirror fixings. They are about 20mm diameter and incredibly bright. Rather than permanent wiring I used an old DIN socket & lead taken from an old charger and wired them directly to the power socket. Quick, safe and easily reversible.

Now, I know this is a little Heath Robinson but it started as a test to see how the lights would look and if they might make any difference to the every increasing risk of a SMIDSY; hard to prove obviously......... but I like them and they certainly make the bike more visible.

Total cost - UKĀ£40. Total time - about 30 minutes.

Photo's - hopefully you can see them below.

Thanks.







#1

Offline LAMBO281

  • Ex Member
  • XR Master
  • *
  • Posts: 518
  • Country: gb
Re: Aux Lights - Easy and Cheap
Reply #1 on: July 25, 2018, 11:16:11 AM
Oooooooo nice shiny bits!!!!!!!  :020: I have the LED BMW badge lights!

#2

Offline Low-Brau

  • XR Master
  • ****
  • Posts: 542
  • Bike: 2016 S1000XR
  • Town: Saint Paul
  • Country: us
Re: Aux Lights - Easy and Cheap
Reply #2 on: July 27, 2018, 02:33:40 AM
Clever!  I like it!  :047:
-Erik

"...but the XR is a sports bike on stilts!"
  -- zbdmark

#3

Offline Shrek29

  • XR Junior
  • *
  • Posts: 4
  • Bike: S1000XR Sport SE
  • Town: Bristol
  • Country: gb
Re: Aux Lights - Easy and Cheap
Reply #3 on: September 28, 2018, 11:46:16 AM
Looks very neat like it and I agree the normal aux lights look to bulky on the XR unless you have crass bars fitted. Where did you get all the parts from?

#4

Offline jgk1459

  • XR Member
  • **
  • Topic Author
  • Posts: 46
  • Bike: 2016 XR SE
  • Country: gb
Re: Aux Lights - Easy and Cheap
Reply #4 on: September 28, 2018, 12:01:57 PM
Lights from Amazon:

https://www.amazon.co.uk/gp/product/B00LPTQFRC/ref=oh_aui_search_detailpage?ie=UTF8&psc=1

The plug was from eBay, it was an extension piece to plug a charger directly into the bike so I just cut and joined.

Hope this helps.


#5

Offline Shrek29

  • XR Junior
  • *
  • Posts: 4
  • Bike: S1000XR Sport SE
  • Town: Bristol
  • Country: gb
Re: Aux Lights - Easy and Cheap
Reply #5 on: September 28, 2018, 04:05:50 PM
 :152:

#6

Offline Spugone

  • XR Junior
  • *
  • Posts: 10
  • Bike: 1000 XR Sport SE
  • Town: Alnwick
  • Country: gb
Re: Aux Lights - Easy and Cheap
Reply #6 on: October 24, 2018, 07:14:22 AM
 :002:d
Looks good, I am thinking of adding some to mine, do you have a picture of your power socket? Did you use a switch or do you just disconnect power socket when not in use?
